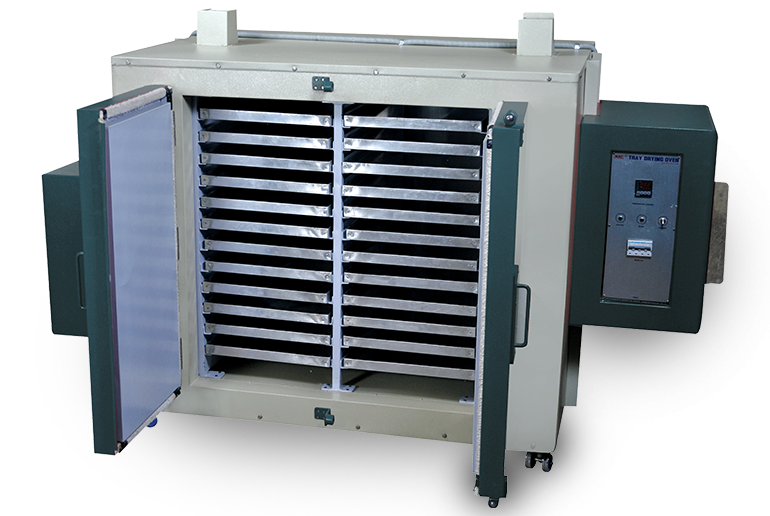

TRAY DRYING OVEN/DEHYDRATOR “SPEC” MSW-216
Widely for drying and moisture removal needs in industries as well as laboratories for soil / seed agriculture departments for temperature range upto 150 deg C.
APPLICATIONS & CONSTRUCTIONAL FEATURES
- Suitable for various industrial, laboratory and R & D applications.
- Heavy Forced Air Circulation by Strong and Reliable axial flow fans for cross flow circulation.
- Digital PID Control System enables superior temperature accuracy
- Adjustable Damper to exhaust moist air or fumes/vapors which in turn enhances efficiency
- Heating is through special grade tubular air heaters placed in the circulating air path.
- Sturdy triple-walled unit built with suitable mild steel sections and heavy gauge mild steel sheet.
- High-Grade Mineral wool insulation is stuffed in between the formed cavity to eliminate heat losses when the oven is operated at the desired temperature.
- Interior of the oven is painted with high-temperature aluminum paint.
- Exterior of the oven is powder-coated
- Brackets to support the heavily laden drying trays at adjustable height are provided on the sides of inner walls.
- Unit is supplied with 8, 12, 24, 48, 96 Nos. of trays as per the tray capacity mentioned corresponding to each model mentioned below.
Technical Specification
- MOC (Outer & Inner): CRC Sheet Duly Powder Coated
- Heater: Tubular Air Heaters
- Temperature Range: Ambient +5˚C to 150˚C ±2˚C
- Temperature Sensor: Fe-K Thermocouple
- Circulation : Heavy Forced Air Circulation by Reliable axial flow fans for cross flow circulation
- Insulation: High Grade Mineral Wool
- MOC Trays: Aluminium {Stainless Steel (SS-304) trays optional if required on request}
- Size of each tray: 800mm x 400mm x 30mm
- Drip Tray: Made of CRC duly painted at base (1 no.)
- Door packing: Asbestos/Silicon Packing Door
- Power Supply: 220/230V or 400/430V, 3 Phase A.C. Supply
| Technical Specifications & Ordering Informations | |||||
| Model | #TDO-8 | #TDO-12 | #TDO-24 | #TDO-48 | #TDO-96 |
|---|---|---|---|---|---|
| Dimension Internal (mm) | 430X840X650 | 430X840X915 | 915X840X915 | 1700X900X915 | 965X1700X1450 |
| Trays Capacity/Supplied | 8 | 12 | 24 | 48 | 96 |
| Heater Load | 3.0KW | 4.0KW | 6.0KW | 10.0KW | 20.0KW |
| Temp. Controller | Microprocessor Based PID Digital Temperature Indicator-cum-Controller or *SAD Controller with in-built digital & alarm | ||||
| Display | Digital LED with Set Value(SV) & Process Value (PV) | ||||
| Power Supply | 220/230V or 400/430V, 3 Phase A.C. Supply | ||||
NOTE
*SAD Controller MICROPROCESSOR BASED SEMI-AUTOMATIC PID DIGITAL TEMPERATURE INDICATOR-CUM-CONTROLLER with an in-built DIGITAL TIMER to control the temperature. Once the unit is switched ‘ON’ heating starts automatically and once the set/desired value is achieved the inbuilt AUTOMATIC DIGITAL MINUTE TIMER starts automatically. Once this set time period is over the heaters are switched “OFF” automatically and the unit sounds a BUZZER, thus alerting the user that process is complete.
OPTIONS
Spare aluminum tray. Spare stainless steel tray (SS-304 grade)
