BSL-2 Van Laboratory
BSL-2 VAN LABORATORIES
Spectevo Van Laboratories: Analytical and Biocontainment Labs in a Compact & Agile Platform
Spectevo’s Van Labs provide quick access to remote locations as well as easy maneuverability in urban areas. These compact mobile laboratories accommodate a small team of personnel enabling them to safely respond to incident sites very quickly. The Spectevo Mobile Van Lab acts as an extension of a regional or local fixed laboratory or, when used in conjunction with Spectevo’s 53’ Mobile laboratory, creates a hub and spoke approach for strategic deployment of an agile public health response. Samples can be prioritized for rapid testing in the field or safely transported to another facility. Additionally, this global platform is ideal for international applications.
BSL-2 Van Lab
Proximity and speed are critical to early detection of a potential outbreak as part of an effective disease surveillance program. Additionally, fixed laboratories and even larger trailer laboratories can present a challenge when engaging in a timely pandemic response, whether it be in remote/rural settings or dense urban populations.
Vans come in a variety of models with varying specifications. Below is a sample chassis specification:
- GVRW: 5,000 kg (11,023 lbs)
- Total payload capacity: 2,500+ kg (5,511 lbs)
- Towing capacity: 2,000+ kg (4,409 lbs)
- Towing capacity: 2,000+ kg (4,409 lbs)
- Fuel capacity: 100+ liters (26 gal)
Based on a heavy-duty ‘high-roof’ van, Spectevo’s Mobile BSL-2 Van Lab incorporates the following features:
General Features:
- Seamless medical-grade vinyl flooring
- Flooring coved up the walls to enhance cleanability
- Interior bulkheads, walls, and ceiling are seamless Arcoplast laboratory grade panel system
- Workbenches are designed to maximize space within the laboratory
- Edges are rounded and polished to avoid snagging Personal Protection Equipment (PPE).
- 180 degree, Rotating Cockpit seating for two (2)
- Fold down workspace
Technical Features:
- Air Handling Unit (AHU)
- Biosafety Cabinet (BSC)
- Casework
- Benchtop Autoclave
- Laboratory Fridge
- Laboratory Freezer
- Uninterrupted Power Supply (UPS)
Spectevo’sBSL-2 Van Lab is designed to support clinical laboratory
testing
operations meeting established BSL-2 requirements as per the U.S. CDC-NIH
publication, Biosafety in Microbiological and Biomedical Laboratories, 5th
Edition
(BMBL) and WHO Laboratory Guidelines.
The mobile laboratory interior will consist of two interior rooms and a mechanical space:
Entry/Anteroom: As the first/entry room, the anteroom is equipped with a hand washing sink with eyewash/emergency shower. A workstation is provided with network data port connections for use with instruments, computer workstation, and printer. Communication connections between the lab, anteroom, and land lines will also be available at the workstation.

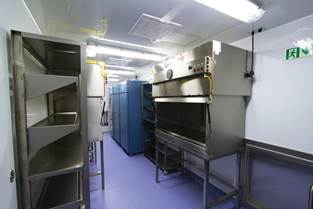

BSL-2 Laboratory: The second room, a BSL-2 Laboratory includes workbenches, casework, a Class II Biosafety Cabinet, autoclave, laboratory fridge and freezer.
Mechanical Area: Includes generator, battery, and electrical distribution panel. An overhead light fixture and hand-held lamp on a cord reel are provided for night operations.
Class II Biological Safety Cabinet (BSC)
- 914 mm wide
- All stainless steel construction
- Ruggedized for use in a mobile laboratory
- HEPA filtration provided
Laboratory refrigerator (4°C/39°F)
- Operating Range
- 2-8°C/36-46°F
- Volume
- Appox. 4 cubic feet/0.113 cubic meter
Laboratory freezer (-20°C/-4°F)
- Operating Range
- -30-0°C/-22-32°F
- Volume
- Appox. 4 cubic feet/0.113 cubic meter
Gallery
CREATING ENVIRONMENTS THAT SERVE LIFE SCIENCE INNOVATION AND ADVANCE GLOBAL HEALTH
Delivering the ultimate versatility to your laboratory solution, Spectevo’s Van Labs are fit for the challenge wherever needed.
