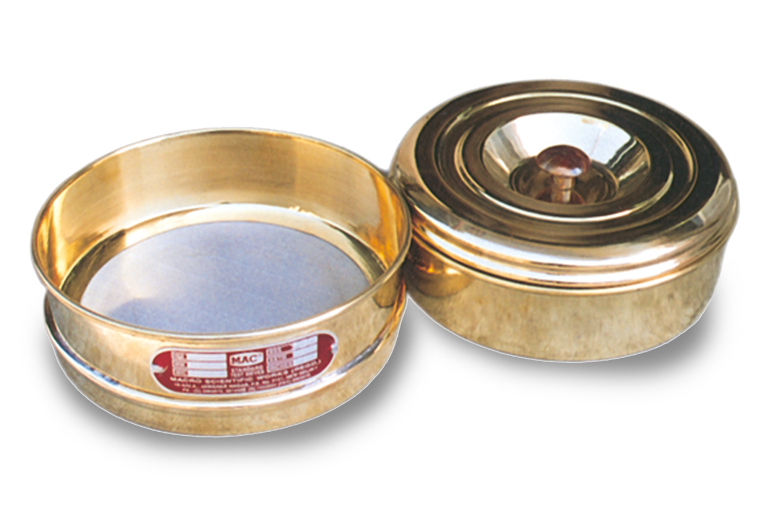

TEST SIEVES “SPEC” (FINE SERIES IN 8" DIA. BRASS FRAME) MSW-325
This is a small description
| Technical Specifications & Ordering Informations | |||||||||||||||||||||||||||||
| B.S.S. | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 18 | 22 | 25 | 30 | 44 | 52 | 60 | 72 | 85 | 100 | 120 | 150 | 170 | 200 | 240 | 300 | 325 | 350 | 400 | 500 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A.S.T.M. | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 25 | 30 | 35 | 45 | 50 | 60 | 70 | 80 | 100 | 120 | 140 | 170 | 200 | 230 | 270 | 300 | 325 | 380 | ---- |
| I.S.I. | 480 | 340 | 280 | 240 | 200 | 170 | 140 | 120 | 100 | 85 | 70 | 60 | 50 | 35 | 30 | 25 | 20 | 18 | 15 | 12 | 10 | 9 | 8 | 7 | 6 | 5 | 4 | 3 | ---- |
| Microns | ---- | 1812 | 2411 | 2207 | 2057 | 1698 | 1405 | 1200 | 1000 | 850 | 710 | 600 | 500 | 355 | 300 | 250 | 212 | 180 | 150 | 125 | 106 | 90 | 75 | 63 | 53 | 45 | 44 | 40 | 25 |
| M.M. | 4.75 | 3.35 | 2.80 | 2.36 | 2.00 | 1.70 | 1.40 | 1.18 | 1.00 | 0.850 | 0.710 | 0.600 | 0.500 | 0.355 | 0.300 | 0.250 | 0.212 | 0.180 | 0.150 | 0.125 | 0.106 | 0.090 | 0.075 | 0.063 | 0.053 | 0.045 | 0.044 | 0.040 | 0.025 |
OPTIONS
- Receiving Pan & lid made of Brass – 8” Dia Frame
- Receiving Pan & lid made of Brass – 12” Dia Frame
