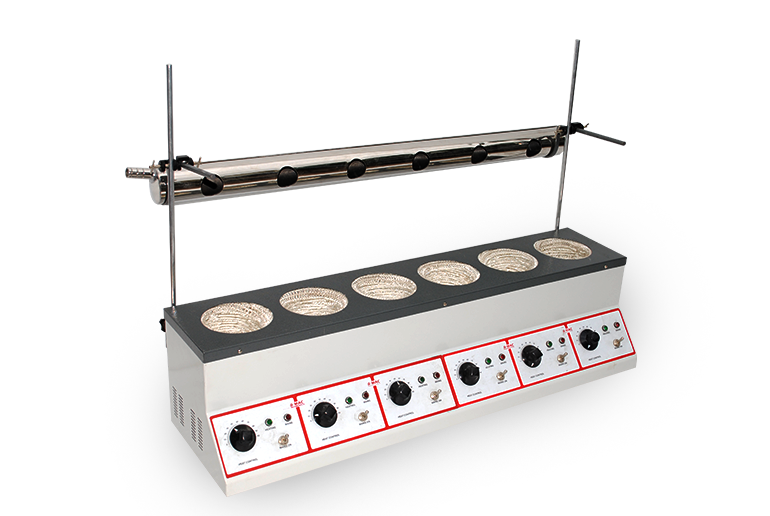

SOXHLET EXTRACTION UNIT “SPEC” MSW-436
"SPEC" Soxhlet Extraction Unit is elegantly designed which delivers safe heating and unmatched extraction process. Suitable for chemical analysis of volatile organic compounds /lipids obtained from solid test material such as grain, food, oil, bio-fuel and waste etc.
FEATURES
- Mantle Type heating system.
- Ideal heater for the extractors of Soxhlet and other types.
- Suitable to heat soxhlet flasks of 50-500ml.
- Consists of mild steel sheet housing, two vertical & two horizontal rods with adopters and screws to hold the flasks.
- Rating of each test: 200 Watts.
- Supplied with or without Glass Parts & Clamps. (as ordered)
- To work on 220 / 230 A.C. supply.
| Technical Specifications & Ordering Informations | ||
| MODEL | #SEU-3 | #SEU-6 |
|---|---|---|
| CAPACITY | 50-500 ml | 50-500 ml |
| MANIFOLD | Unit of 3 tests | Unit of 6 tests |
| HEATING SYSTEM | Mantle Type | Mantle Type |
| RATING EACH TEST | 200 Watts | 200 Watts |
