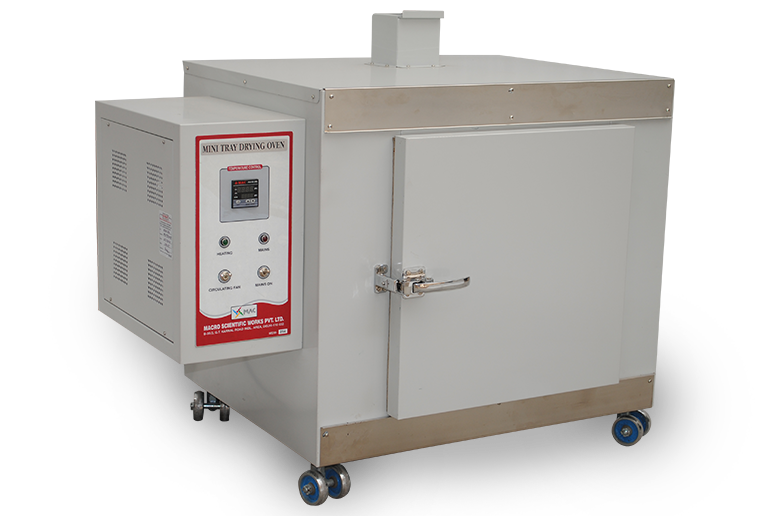

MINI TRAY DRYING OVEN/MINI DEHYDRATOR “SPEC” MSW-214
Specially designed for drying of seeds, leafs, fruit and vegetables etc having temperature range from 50 deg. C to 150 deg. C.
APPLICATIONS & CONSTRUCTIONAL FEATURES
- Suitable for various industrial, laboratory and R&D applications.
- Forced Air Circulation fan for temperature uniformity.
- Digital PID Control System enables superior temperature accuracy.
- Sturdy triple-walled inner chamber made of mild steel sheet.
- High-Grade Mineral wool insulation is stuffed in between the formed cavity to eliminate heat losses when the oven is operated at the desired temperature.
- Interior of the oven is painted with high-temperature resistant paint.
- Exterior of the oven is powder coated.
- Drying trays with adjustable height are provided on the sides of inner walls.
TECHNICAL SPECIFICATION & ORDERING INFORMATIONS
- MOC (Internal): Mild Steel Sheet Duly painted
- MOC (Exterior): Mild Steel Sheet Duly painted.
- MOC Trays: Made of Aluminium
- Heater: Tubular Air Heaters
- Temperature Range: Ambient 50˚C to 150˚C
- Temperature Accuracy: ±3˚C
- Temperature Sensor: Fe-K Thermocouple
- Temperature Controller: MICROPROCESSOR BASED PID DIGITAL TEMPERATURE with digital LED display for Set Value (SV) & Process Value (PV) OR Auto Time Control Microprocessor (SAD) with Digital Timer Add Prefix SAD Added by Model
- Circulation: Heavy Forced Air Circulation by Strong & Reliable axial flow fans for cross flow circulation
- Insulation: High-Grade Mineral Wool
- Power Supply: 220/230 or 400/430V, 3 Phase A.C. Supply
| Technical Specifications & Ordering Informations | ||
| Model | Internal Dimensions (LXBXD) mm | Tray Capacity/ Supplied |
|---|---|---|
| #MTDO-45 | 355x355x355 mm | 2 |
| #MTDO-95 | 455x455x455 mm | 3 |
| #MTDO-125 | 455x455x605 mm | 4 |
| #MTDO-224 | 605x605x605 mm | 6 |
| #MTDO-252 | 605x455x910 mm | 9 |
| #MTDO-336 | 605x605x910 mm | 9 |
| #MTDO-500 | 600x900x900 mm | 9 |
| #MTDO-750 | 900x900x900 mm | 9 |
| #MTDO-1000 | 900x900x1200 mm | 12 |
