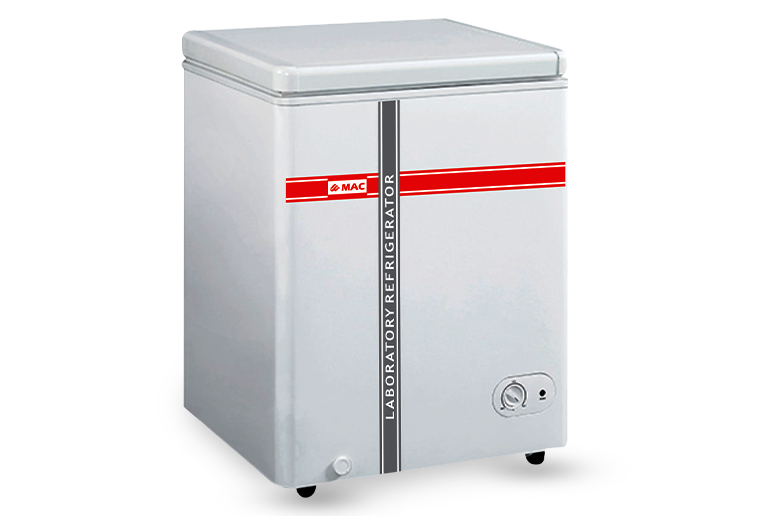

LABORATORY REFRIGERATOR HORIZONTAL “SPEC” MSW-138(HLC)
This is a small description
FEATURES
- Cost Effective, but high in performance.
- CFC/HCFC free foamed in-place PUF (Polyurethane Insulation) accounts for an excellent holdover time.
- Temperature range from 2°C to 12°C is controlled with the help of microprocessor based digital temperature controller.
- Outer made up of CRC sheet duly powder coated and inner chamber has moulded plastic inner liner or stucco lined with solid hard top door.
Note
- Input voltage should be ± 6%
- Operation condition 5°C to 43°C
| Technical Specifications & Ordering Informations | ||||||
| MODEL | #LCR-100 | #LCR-200 | #LCR-300 | #LCR-400 | #LCR-500 | #LCR-600 |
|---|---|---|---|---|---|---|
| Gross Volume | 100 lts | 200 lts | 300 lts | 400 lts | 500 lts | 600 lts |
| MOC (Inner) | Moulded plastic inner liner OR stucco lined with solid hard top door | |||||
| MOC (Outer) | CRC sheet duly powder coated | |||||
| Insulation | High density foamed-in-place polyurethane foam (PUF) insulation for minimal cooling losses. | |||||
| External Dimensions (WxDxH) mm | 515x550x845 | 925x540x836 | 1100x600x826 | 1356x710x825 | 1653x695x842 | 2415x695x842 |
| Refrigerant | R134A / 370 gram | |||||
| Temperature Range | 2°C to 12°C | |||||
| Power Supply | 230V AC / 50 Hz | |||||
