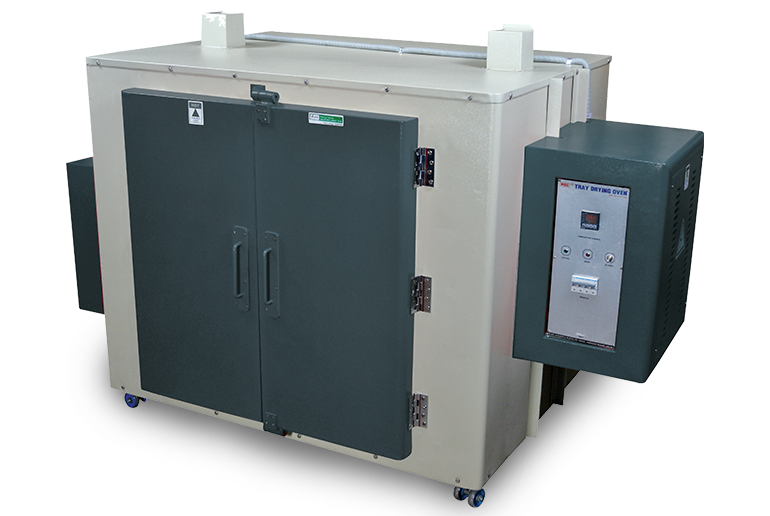

INDUSTRIAL TRAY DRYING OVEN “SPEC” (MICROPROCESSOR CONTROLLED) MSW-215
Designed for heavy duty Industrial and Laboratory drying/digestion/curing applications reqiuring temperature range upto 250 deg. C.
APPLICATIONS & CONSTRUCTIONAL FEATURES
- Suitable for various industrial, laboratory and R & D applications.
- Heavy Forced Air Circulation by Strong and Reliable axial flow fans for cross flow circulation.
- Voltage and Ampere meter equipped for monitoring safe operating of the machine.
- Digital PID Control System enables superior temperature accuracy
- Over Temperature & Over Current Protection.
- Adjustable Damper to exhaust moist air or fumes/vapors which in turn enhances efficiency
- Heating is through special grade tubular air heaters placed in the circulating air path.
- Sturdy triple-walled unit built with suitable mild steel sections and heavy gauge mild steel sheet.
- High-Grade Mineral wool insulation is stuffed in between the formed cavity to eliminate heat losses when the oven is operated at the desired temperature.
- Interior of the oven is painted with high-temperature aluminum paint.
- Exterior of the oven is powder-coated
- Brackets to support the heavily laden drying trays at adjustable height are provided on the sides of inner walls.
- Unit is supplied without trays.
- Trays, if required made of aluminum or stainless steel (SS-304), are available at extra cost.
- Fitted with Microprocessor Based PID Digital Temperature Indicator-cum-Controller with Digital LED Display for Set Value (SV) & Process Value(PV) or with MICROPROCESSOR BASED SEMI-AUTOMATIC PID DIGITAL Temperature Indicator-Cum-Controller with an in-built DIGITAL TIMER to control the temperature from ambient +5˚C to 250˚C ± 5˚C. Once the unit is switched ‘ON’ heating starts automatically and once the set/desired value is achieved the inbuilt AUTOMATIC DIGITAL MINUTE TIMER starts automatically. Once this set time period is over the heaters are switched “OFF” automatically and the unit sounds a BUZZER. Thus alerting the user that the process is complete. (OPTION)
| Technical Specifications & Ordering Informations | |||
| Model | INNER DIMENSIONS (WXDXH) (in mm) | INNER DIMENSIONS (WXDXH) (in Feet) | Maximum Tray Holding Capacity |
|---|---|---|---|
| #ITDO-323 | 900x600x900 | 3’ x 2’ x 3’ | 12 |
| #ITDO-333 | 900x600x900 | 3’ x 2’ x 3’ | 12 |
| #ITDO-334 | 900x900x1200 | 3’ x 2’ x 4’ | 24 |
| #ITDO-335 | 900x900x1500 | 3’ x 2’ x 5’ | 24 |
| #ITDO-326 | 900x600x1800 | 3’ x 2’ x 6’ | 24 |
| #ITDO-336 | 900x900x1800 | 3’ x 3 x 6’ | 48 |
| #ITDO-338 | 900x900x2400 | 3’ x 3’ x 8’ | 60 |
| #ITDO-438 | 1200x900x2400 | 4’ x 3’ x 8’ | 96 |
| #ITDO-464 | 1200x1800x1200 | 4’ x 6’ x 4’ | 48 |
Price without trays (trays available at extra cost)
*SAD Controller :- Microprocessor based digital temperature indicator-cum-controller with an in built digital timer and alarm.
OPTIONS
- Each Aluminum tray to cost extra.
- Each Stainless Steel tray (SS-304 Grade) to cost extra.
