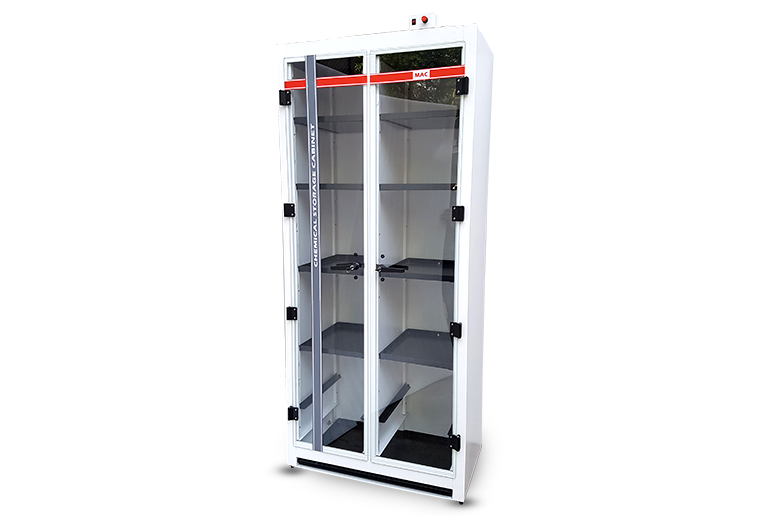

DUCTED CHEMICAL STORAGE CABINET “SPEC” MSW-166(DT)
Constructed of heavy gauge steel plate coated with anti-corrosion powder paint. Supplied with adjustable shelves for each storage compartment and spill tray.
Features
- Total elimination of noxious vapors by ventilation fan.
- Low running cost as no expensive consumables are required.
- Safe to use as there is no risk or non-functioning saturated filters.
- Constructed of heavy gauge steel plate coated with anti-corrosion powder paint.
- Excellent visual comfort with large doors which allows full views of the stored chemicals.
- Supplied with four adjustable shelves for each storage compartment and spill tray.
| Technical Specifications & Ordering Informations | ||||
| MODEL | #CSC-191 | #CSC-092 | #CSC-192 | #CSC-194 |
|---|---|---|---|---|
| Type | 100 one liter bottles and flasks | 100 one liter bottles and flasks | 200 one liter bottles and flasks | 200 one liter bottles and flasks |
| Applications | For the storage of acids, bases or solvents | For the storage of acids, bases or acid-solvent or solvent-acids in 2 isolated compartment | For the storage of acids, bases or solvent in 2 isolated compartments | For the storage of acids, bases or solvent in 4 isolated compartment |
| Ventilation Rate | Upto 275 m3/hr | Upto 275 m3/hr | Upto 550 m3/hr | Upto 550 m3/hr |
| Fan Speed | Adjustable | Adjustable | Adjustable | Adjustable |
| Shelf Dimensions (mm) (WxDxH) | 697x420x20 (4 units) | 320x420x20 (8 units) | 718x415x20 (8 units) | 330x415x 20 (16 units) |
| Interior Dimensions (mm) (WxDxH) | 720x470x1690 | 345x470x1690 (Two compartments) | 745x470x1710 (Two compartments) | 355x470x1710 (Four compartments) |
| Spillage Tray | 1 No. | 1 No. | 2 Nos. | 2 Nos. |
| Electrical Supply | 220 VAC,50 Hz,0.4A | 220 VAC,50 Hz,0.4A | 220 VAC,50 Hz,0.4A | 220 VAC,50 Hz,0.4A |
