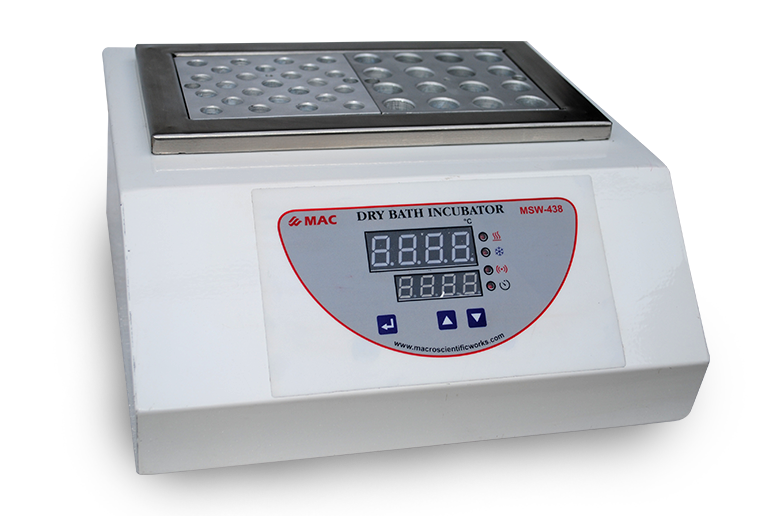

DRY BATH INCUBATOR (HEATING BLOCK INCUBATOR) “SPEC” MSW-438(SAD)
"SPEC" Dry Bath Incubators come in either single, dual or four block models, along with a complete set of interchangeable blocks. Designed for denaturing DNA melting agar, coagulation studies, hybridization and hot start thermo-cycled reaction.
Features
- Designed for multi-function dry bath heating.
- Ideal for Enzyme Reactions, Inactivation of Sera, Incubation and other laboratory procedures.
- Precise temperature control from ambient +5°C to 100°C with ±1°C accuracy.
- User’s self-compensation functions for the temperature to counter for the difference between block temperature and sample temperature.
- Fitted with MICROPROCESSOR BASED PID DIGITAL TEMPERATURE INDICATOR-cum-CONTROLLER for auto control with respect to time and temperature and is also fitted with IN-BUILT BUZER TIMER for AUTO CONTROL to indicate cycle end.
- Supplied with set one tube heating block as per the block capacity.
- Microprocessor Based Digital Temperature Indicator cum-Controller having an individual display for set value and process value.
- Heating cavity of 49mm carries one heating blocks of size 96mm (L) x 96mm (B) x 49 mm(H) each.
- Recessed well/ cavity accommodates one interchangeable aluminum insert block.
- Block extraction tool facilitates lifting of hot blocks for easy interchangeability.
- SPEC Dry Heating Block Incubators are powerful, compact and accurate everything you need for the precision heating of test tubes, cuvettes, microcentrifuge tubes, and other small containers.
- High performance and user-friendly controls combine to produce a specification which offers exceptional efficiency and reliability. The benefit to you-convenient, no fuss heating!
- Excellent temperature control.
- Uniform and stable heating.
- New compact size.
| Technical Specifications & Ordering Informations | |||
| Model | #DBI-4381(SAD) | #DBI-4382(SAD) | #DBI-4384(SAD) |
|---|---|---|---|
| Controller | Microprocessor Based Digital Temperature Indicator cum-Controller with in-built timer | ||
| Display | LED with set value (SV) and Process Value (PV) | ||
| Block Dimensions | 96mm(L) x 96mm (B) x 49mm (H) | ||
| No. of Blocks | 1 | 2 | 4 |
| Heater Load | 750 Watts | ||
| Temperature Range | Ambient +5°C to 100°C | ||
| Temperature Accuracy | ±1°C | ||
| Sensor | PT-100 | ||
| Material External | Powder Coated CRC Steel | ||
| Block | Polished Aluminium | ||
| Block Extraction Tool | 1 No. Supplied with the unit for easy interchangeability of heating blocks | ||
| Timer (SAD) | Fitted with AUTOMATIC DIGITAL MINUTE TIMER which starts automatically when set/desired value of temperature is achieved. When the set time period is over the heaters get switched off automatically | ||
| Buzzer | Alarm for cycle end | ||
| Power Supply | 230V AC, 50/60 Hz | ||
