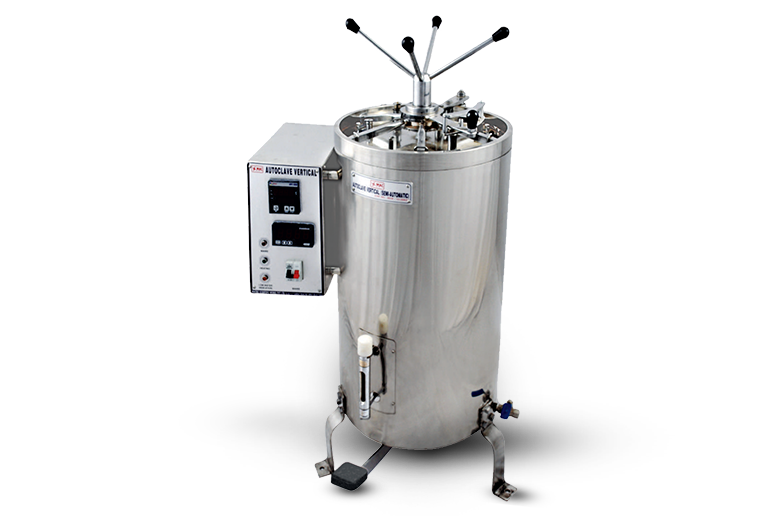

AUTOCLAVE VERTICAL (SEMI AUTOMATIC DIGITAL) “SPEC” MSW-101(SAD)
Radial locking complete Stainless Steel Semi-Automatic with timer and end of cycle Buzzer.
Features
- SPEC Semi Automatic Digital Autoclaves are most ideal for critical applications requiring assured and reliable total destruction of all living micro-organisms.
- These are semi automatic models requiring tighter control of temperature and sterilizing time, thus eliminating any chances of under or over exposure of media/ samples with respect to temperature and hold time.
- Inner chamber and outer chamber are made of stainless steel (SS-304 grade).
- Heaters cover stand and carrier/bucket are made of Stainless Steel.
- Lid made of thick machined Stainless Steel plate.
- Radial locking lid ensures user safety and safe locking.
- Lid is fitted with Pressure Gauge, Spring Loaded Safety Valve, extra Safety Valve, Manual Exhaust Valve, Vacuum Breaker-cum-Purge Valve as a safety device and water level indicator.
- Drain Valve facilitates easy cleaning of the chamber.
- Moulded jointless silicon rubber gasket.
- All internal joints are argon arc welded, ground and polished to give crevice free internals.
- µProcessor based Controller with time and temperature settable by user.
- Operating range from 15 to 22 psi pressure. (adjustable)
- Class ‘A’ Platinum (Pt-100) sensor, enabling precise and accurate monitoring in 0.1OC resolution and + 1OC accuracy.
- End of cycle buzzer to alert the user.
- Miniature Circuit Breaker for MAINS On/Off plus safety of control panel.
- Industrial grade energy efficient heaters reduce power bills drastically.
- Fitted with low water cut-off for general safety of heating elements.
Usage Portability
- Single lever locking of lid for faster operations.
- Heater and pressure interlock for lid lock safety.
- Effortless lifting of lid with assisted spring push back support
- Accurate temperature control with user level flexibility. Display process and set values simultaneously.
- Microprocessor Based Fully Automatic Fuzzy Logic Control System with Alphanumeric Digital backlit LCD display.
- Automatic Steam purging and exhaust
- Fitted with AUTOMATIC DIGITAL MINUTE TIMER which starts automatically when set/desired value of temperature is achieved. When the set time period is over the heaters get switched off automatically with alarm for cycle end.
- With LCD display data logger with REAL TIME, DATE, TIME etc directly on PC (SOFTWARE OPTIONAL) or direct on DOT MATRIX PRINTER.
| Technical Specifications & Ordering Informations | ||||||
| Model | #AVS-22 | #AVS-40 | #AVS-50 | #AVS-78 | #AVS-98 | #AVS-187 |
|---|---|---|---|---|---|---|
| Inner Dimensions (Dia x Height) | 250×450mm | 300×500mm | 350×550mm | 400×600mm | 450×600mm | 550×750mm |
| Dimensions of Basket (Dia x Height) | 225×300mm | 275×350mm | 325×400mm | 375×450mm | 425×450mm | 525×600mm |
| Capacity | 22 Ltrs | 40 Ltrs | 50 Ltrs | 78 Ltrs | 98 Ltrs | 187 Ltrs |
| Heater Load | 2.0 KW | 3.0 KW | 3.0 KW | 4.0 KW | 4.0 KW | 2.0 + 3.0 KW |
| Gasket | Made of Jointless Silicon Rubber | |||||
| Controller | Semi Automatic Digital temperature Indicator-cum-Controller | |||||
| Display | Digital LED with Set Value (SV) and Process Value (PV) | |||||
| Timer (Auto Time Control) & Buzzer | Fitted with AUTOMATIC DIGITAL MINUTE TIMER which starts automatically when set/desired value of temperature is achieved. When the set time period is over the heaters get switched off automatically | |||||
| Buzzer | Alarm for cycle end | |||||
| Sterilizing Pressure | 1.2 kgf /cm² (15 psi) at 121ºC | |||||
| Operating Pressure | From 15psi to 22 psi (Adjustable) | |||||
| MOC (Pressure Vessel) | Stainless Steel (SS-304) | |||||
| MOC (External Wall) | Stainless Steel (SS-304) | |||||
| MOC (Top Lid) | Thick machined Stainless Steel plate | |||||
| Basket | Stainless Steel (SS-304) | |||||
| Exhaust Supply | Manually through a exhaust valve | |||||
| Power Supply | 220/230V AC, 50/60Hz | |||||
