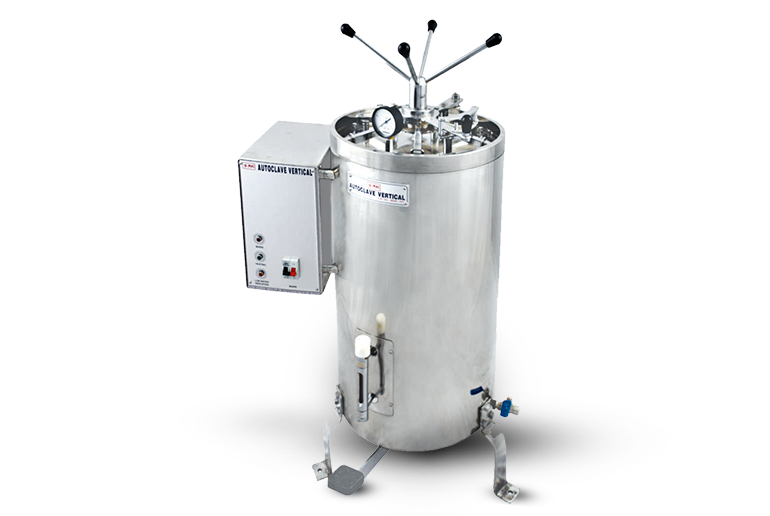

AUTOCLAVE VERTICAL (DELUXE MODEL) “SPEC” MSW-101(DX)
Radial locking complete Stainless Steel Deluxe model Automatic with safety devices
Features
- SPEC Vertical Autoclaves are most ideal for all applications requiring, routine total destruction of all living micro-organisms
- An Ideal tool for Laboratories, hospitals, nursing homes, R & D labs, etc.
- Inner chamber and outer chamber are made of stainless steel (SS-304 grade).
- Heaters cover stand and carrier/bucket are made of Stainless Steel.
- Lid made of thick machined Stainless Steel plate.
- Lid is fitted with Pressure Gauge, Spring Loaded Safety Valve, Manual Exhaust Valve, Vacuum Breaker-cum-Purge Valve as a safety device and water level indicator.
- Drain Valve facilitates easy cleaning of the chamber.
- Moulded jointless silicon rubber gasket.
- All internal joints are argon arc welded, ground and polished to give crevice free internals.
- Operating range from 15 to 22 psi pressure (adjustable).
- Industrial grade energy efficient heaters reduce power bills drastically.
- Pressure Control Switch/Pressure Cut Off (*PCO) device. (Option)
- Low water Level Cut Off (*WCO) device for safety of heating element. (Option)
- To work on 220/230Volts, 50/60 Hz AC supply.
| Technical Specifications & Ordering Informations | ||||||
| Model | #AV-22 (DX) | #AV-40 (DX) | #AV-50 (DX) | #AV-78 (DX) | #AV-98 (DX) | #AV-187 (DX) |
|---|---|---|---|---|---|---|
| Inner Dimensions (Dia x Height) | 250×450mm | 300×500mm | 350×550mm | 400×600mm | 450×600mm | 550×750mm |
| Dimensions of Basket (Dia x Height) | 225×300mm | 275×350mm | 325×400mm | 375×450mm | 425×450mm | 525×600mm |
| Capacity | 22 Ltrs | 40 Ltrs | 50 Ltrs | 78 Ltrs | 98 Ltrs | 187 Ltrs |
| Heater Load | 2.0 KW | 3.0 KW | 3.0 KW | 4.0 KW | 4.0 KW | 2.0 + 3.0 KW |
| Sterilizing Pressure | 1.2 kgf /cm² (15 psi) at 121ºC | |||||
| Pressure Gauge | 0-2.1 kgf /cm² (30 psi) | |||||
| Operating Pressure | From 15psi to 22 psi (Adjustable) | |||||
| Pressure Control (OPTION) | Piezostat (Pressure Control Switch) | |||||
| Safety Device (Heater) (OPTION) | Low water level cut-off for safety of heating element | |||||
| Gasket | Made of Jointless Silicon Rubber | |||||
| MOC (Pressure Vessel) | Stainless Steel (SS-304) | |||||
| MOC (External Wall) | Stainless Steel (SS-304) | |||||
| MOC (Top Lid) | Thick machined Stainless Steel plate | |||||
| Basket | Stainless Steel (SS-304) | |||||
| Power Supply | 220/230V AC, 50/60Hz | |||||
